HD-1000C/CD

The HD-1000C is a standard type indicator with large easy-to-view display.
It can be used for various purposes with multifunction setting by numeric keys.
It is much easier to use by utilizing optional USB memory stick (utility model acquisition No.2008-004227).
HD-1000CD is for digital load cell.

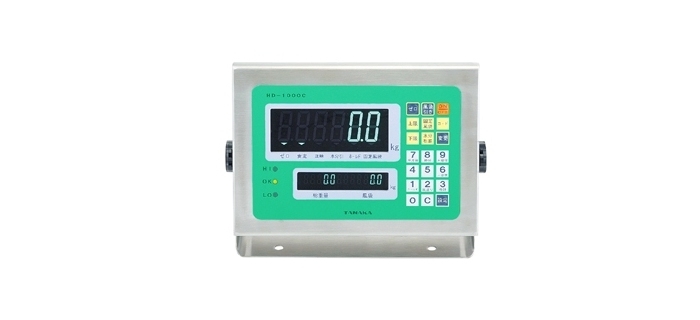

Appearance

Features

○ Dust-proof and Water-proof box structure, equivalent to IP 67
Dustproof and waterproof performance is equivalent to IP 67protection grade, and it can be used safely even in harsh operating environments.

○ Long lasting clean stainless case
Compared with a resin case, a steel case has durability and stain-resistant property.

○ Bright and large 35-mm fluorescent display tube that is easy to view
A bright fluorescent display tube that is easy to view even in a dark factory is adopted.
It is a large display with a character height of 35 mm, making it easy to check even from a remote place.

○ Useful comparator function
You will be informed of the judgment result with the red, green and yellow LED buzzer.

○ Abundant options
External input/output: Sends signals to external lamps, buzzers, or sequencers.
RS-232C, RS-422/485: Send weighing data to a computer or a sequencer.
Integrated type printer: Print weight and total weight. Sum can be performed by code No.
Caster stand: It is a stand with casters that allows you to place the indicator on the floor and move wherever you like.
USB memory: Write the weighing value to the memory, a data recording method that turns it into an integrated printer. The written contents are CSV data and can be confirmed and processed with Excel etc. on a personal computer.

Specification

Usage environment
Model	HD-1000C/CD
Dustproof and waterproof performance	Equivalent to IP 67 protection grade
Display	7 segments blue fluorescent display tube 1. Weight display: Character height 35 mm 6 digits 2. Gross weight display: Character height 11.5 mm 5 digits 3. Tare display: Character height 11.5 mm 5 digits
Status display	Fluorescent display tube ∇ mark: Zero, Stable, Net, Moisture subtraction, Hold, Fixed tare LED: Hi (red), Ok (green), Lo (yellow)
Key switches	ON/OFF, Zero, Tare subtraction, Fixed tare, moisture subtraction rate, Upper limit, Lower limit, Code, Change, Numeric keys, Setting, Year/Month/Date, Hour and minute, Hold, + Printing, - Printing, Total, Paper feed
Functions	Comparator function, Hold function, Accumulate function Store the set values (upper/lower limit, fixed tare value, moisture subtraction rate) by code No. (0 to 99) Clock function, Buzzer
Interface Options	1. Dedicated serial interface (standardly equipped) 　For connection of dedicated machines such as 2-line data output, printer · external display device 2. External input/output (option OP-02) 　Input × 4 items, output × 4 items (FET relay output) * Within AC 130 V 70 mA, DC 30 V 70 mA 3. RS-232C, RS-422/485 (Option OP-03) 　Select one of 232C, 422, 485. 4. Integrated printer (option OP-P) 　Print weighing value and total value etc. (Thermosensitive roll paper · Kanji character printing) 　(If the customers add a printer option, the standard serial interface cannot be used) 5. Caster stand (option OP-S) 6. USB memory (Option OP-U) 　Weighing value is written to the memory as CSV data. The contents of the memory can be confirmed and used with Excel etc. on a computer. 　(When adding the USB memory option, the customer cannot use the integrated printer and RS-232C option. Only designated USB memory could be used)
Power supply/power consumption	AC 100 V ± 10% 50/60 Hz Up to about 20 VA

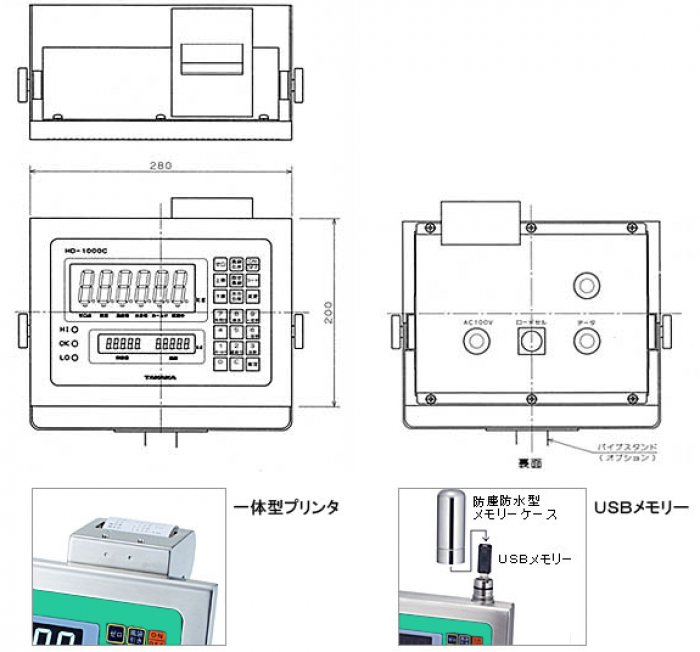

External dimensions	Width 280 × height 200 × length 98 mm
Weight	Approximately 4 kg
