Indicators(List)

HD-1000C　USB memory

Automated data input with USB memory stick.

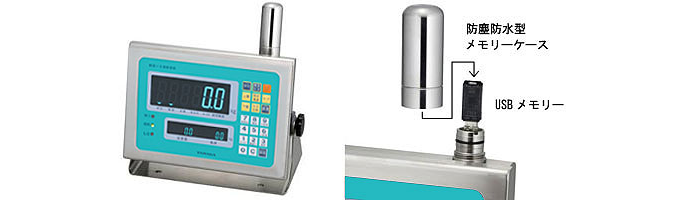

Appearance

Features

○ Weighing value is written to USB memory as CSV data.
○ It is a new method to store the weighing record instead of printing.
○ Simple, as it is written by pressing [+ print] or [- print] key.
○ CSV data can be confirmed and processed with Excel etc. on a computer.
○ The memory is protected by a dustproof and waterproof memory case, and environmental measures are perfect (equivalent to IP 67).
○ One USB memory attached

Options specification

1. File name to be created
The following file name is automatically created, and data is written.
If the file name exists, data is added to it.
File name: scale00. csv

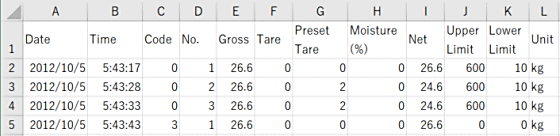

2. Data formation of file

3. Display example of spreadsheet software

4 .Storage capacity
Approximately 5 million pieces/1 GB

5 .Rich options
Note: When adding this option, the customer cannot use the integrated printer and RS-232C option.
　　　　　　　　　
This option is a manufacturer option.

Other option

■ Dedicated serial interface (standardly equipped)

■ External input/output (option OP-02)
Sends signals to external lamps, buzzers and sequencers.

■ RS-232C, RS-422/485 (Option OP-03)
Send weighing data to a computer or a sequencer.

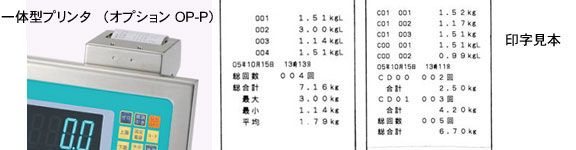

■ Integrated printer (option OP-P)
Print weighing value and total value etc.
The values can also be summed by code No.

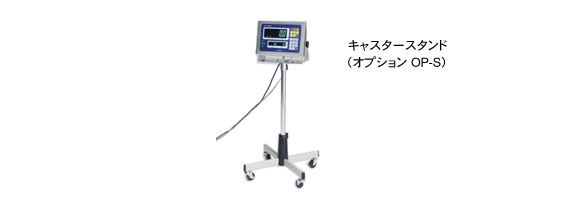

■ Caster Stand (Option OP-S)
It is a stand with casters that allow you to place the indicator on the floor and move it wherever you like.

2. Data formation of file

3. Display example of spreadsheet software

4. Storage capacity
Approximately 5 million pieces/1 GB

5. Rich options
Note: When adding this option, the customer cannot use the integrated printer and RS-232C option.

*This option is a manufacturer option.

Other Options

Specification

Usage environment
Model	HD-1000C
Dustproof and waterproof performance	Equivalent to IP 67 protection grade
Display	7 segments blue fluorescent display tube 1. Weight display: Character height 35 mm 6 digits 2. Gross weight display: Character height 11.5 mm 5 digits 3. Tare display: Character height 11.5 mm 5 digits
Status display	Fluorescent display tube ∇ mark: Zero, Stable, Net, Moisture subtraction,Hold、Change LED: Hi (red), Ok (green), Lo (yellow)
Key switches	ON/OFF, Zero, Tare subtraction, Fixed tare, moisture subtraction rate, Upper limit, Lower limit, Code, Change, Numeric keys, Setting, Year/Month/Date, Hour and minute, Hold, + Printing, - Printing, Total, Paper feed
Functions	Comparator function, Hold function, Accumulate function Store the set values (upper/lower limit, fixed tare value, moisture subtraction rate) by code No. (0 to 99) Clock function, Buzzer
Interface Options	1. Dedicated serial interface (standardly equipped) 　For connection of dedicated machines such as 2-line data output, printer · external display device 2. External input/output (option OP-02) 　Input × 4 items, output × 4 items (FET relay output) * Within AC 130 V 70 mA, DC 30 V 70 mA 3. RS-232C, RS-422/485 (Option OP-03) 　Select one of 232C, 422, 485. 4. Integrated printer (option OP-P) 　Print weighing value and total value etc. (Thermosensitive roll paper · Kanji character printing) 　(If the customers add a printer option, the standard serial interface cannot be used) 5. Caster stand (option OP-S) 6. USB memory (Option OP-U) 　Weighing value is written to the memory as CSV data. The contents of the memory can be confirmed and used with Excel etc. on a computer. 　(When adding the USB memory option, the customer cannot use the integrated printer and RS-232C option. Only designated USB memory could be used)
Power supply/power consumption	AC 100 V ± 10% 50/60 Hz Up to about 20 VA
External dimensions	Width 280 × height 200 × length 98 mm(excluding the protrusion)
Weight	Approximately 4 kg
