Truck Scales(Loading part)
Pit-less type（LB type / LV type）
Pit-less type (SC-4LB · 6LB, SC-6LV · 8LV), is unnecessary to dig a pit, because it is installed in ground. The vehicle will get on and off via concrete slope etc. The left and right main girders also play the role of guards.

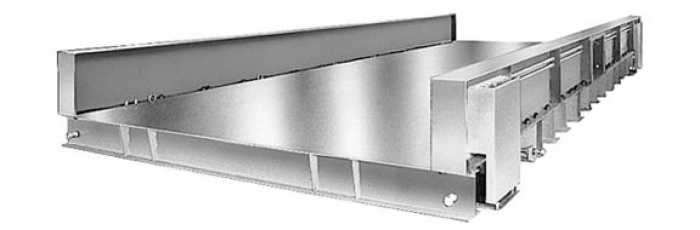

Appearance
Specification
●SC-4LB・6LB Specifications of Pit-less type
| Capacity of Scale(t) | Scale Interval(kg) | Platform Dimension(m) | A(mm) | B(mm) | H(mm) | Model |
|---|---|---|---|---|---|---|
| 15 | 5・10 | 2.4×5.5 | 2,400 | 5,500 | 300 | SC-4LB-15 |
| 20 | 5・10 | 2.7×6.5 | 2,700 | 6,500 | 385 | SC-4LB-20 |
| 25 | 5・10 | 2.7×6.5 | 2,700 | 6,500 | 385 | SC-4LB-25 |
| 30 | 5・10 | 3.0×8.0 | 3,000 | 8,000 | 385 | SC-4LB-30 |
| 5・10 | 3.0×10.5 | 3,000 | 10,500 | 385 | SC-4LB-30 | |
| 40 | 10・20 | 3.0×8.0 | 3,000 | 8,000 | 385 | SC-4LB-40 |
| 10・20 | 3.0×10.5 | 3,000 | 10,500 | 385 | SC-4LB-40 | |
| 10・20 | 3.0×12.0 | 3,000 | 12,000 | 385 | SC-4LB-40 | |
| 10・20 | 3.0×13.0 | 3,000 | 13,000 | 385 | SC-4LB-40 | |
| 50 | 10・20 | 3.0×8.0 | 3,000 | 8,000 | 385 | SC-4LB-50 |
| 10・20 | 3.0×10.5 | 3,000 | 10,500 | 385 | SC-4LB-50 | |
| 10・20 | 3.0×12.0 | 3,000 | 12,000 | 385 | SC-4LB-50 | |
| 10・20 | 3.0×13.0 | 3,000 | 13,000 | 385 | SC-4LB-50 | |
| 10・20 | 3.0×15.0 | 3,000 | 15,000 | 385 | SC-6LB-50 | |
| 60 | 10・20 | 3.0×13.0 | 3,000 | 13,000 | 385 | SC-4LB-60 |
| 10・20 | 3.0×15.0 | 3,000 | 15,000 | 385 | SC-6LB-60 |
We also produce scales of special dimensions besides the above.
●SC-6LV・8LV Specifications of super-thin pit-less type
| Capacity of Scale(t) | Scale Interval(kg) | Platform Dimension(m) | Width(mm) | Length(mm) | Height(mm) | Model |
|---|---|---|---|---|---|---|
| 30 | 10 | 3×8 | 3,000 | 8,000 | 300 | SC-6LV-30 |
| 30 | 10 | 3×10.5 | 3,000 | 10,500 | 300 | SC-6LV-30 |
| 40 | 10・20 | 3×8 | 3,000 | 8,000 | 300 | SC-6LV-40 |
| 40 | 10・20 | 3×10.5 | 3,000 | 10,500 | 300 | SC-6LV-40 |
| 50 | 10・20 | 3×15 | 3,000 | 15,000 | 300 | SC-8LV-50 |
| 60 | 10・20 | 3×15 | 3,000 | 15,000 | 300 | SC-8LV-60 |

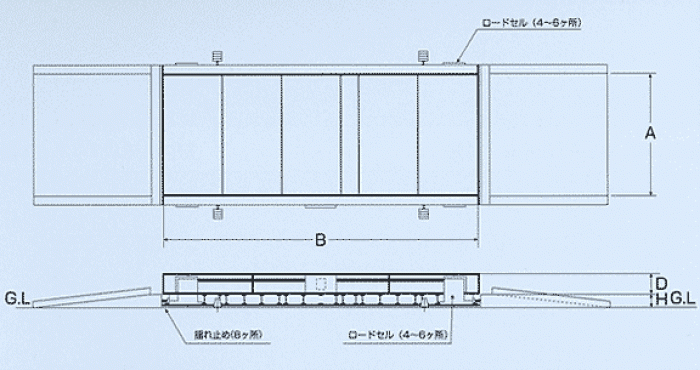

External form
Related Equipment
-
HD-1000C/CD
-
-
-
ATS-100
