Truck Scales(Loading part)
Embedded type（LA type / LV type）
Since the pit type (SC-4LA · 6LA, SC-6LV · 8LV) is embedded
in the pit (foundation), the level with the ground.

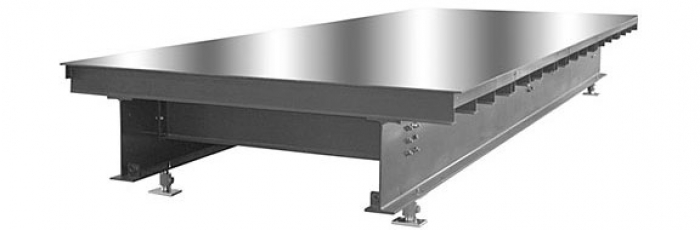

Appearance
Specification
●SC-4LA・6LA Embedded type
| Capacity of Scale(t) | Scale Interval(kg) | Platform Dimension(m) | A(mm) | B(mm) | H(mm) | Model |
|---|---|---|---|---|---|---|
| 15 | 5・10 | 2.4×5.5 | 2,400 | 5,500 | 682 | SC-4LA-15 |
| 20 | 5・10 | 2.7×6.0 | 2,700 | 6,000 | 757 | SC-4LA-20 |
| 5・10 | 2.7×6.5 | 2,700 | 6,500 | 757 | SC-4LA-20 | |
| 25 | 5・10 | 2.7×6.5 | 2,700 | 6,500 | 807 | SC-4LA-25 |
| 5・10 | 3.0×7.5 | 3,000 | 7,500 | 882 | SC-4LA-25 | |
| 30 | 5・10 | 3.0×7.5 | 3,000 | 7,500 | 882 | SC-4LA-30 |
| 5・10 | 3.0×8.0 | 3,000 | 8,000 | 882 | SC-4LA-30 | |
| 5・10 | 3.0×10.5 | 3,000 | 10,500 | 932 | SC-4LA-30 | |
| 40 | 10・20 | 3.0×8.0 | 3,000 | 8,000 | 932 | SC-4LA-40 |
| 10・20 | 3.0×10.5 | 3,000 | 10,500 | 1,032 | SC-4LA-40 | |
| 10・20 | 3.0×12.0 | 3,000 | 12,000 | 1,020 | SC-4LA-40 | |
| 50 | 10・20 | 3.0×8.0 | 3,000 | 8,000 | 1,035 | SC-4LA-50 |
| 10・20 | 3.0×10.5 | 3,000 | 10,500 | 1,035 | SC-4LA-50 | |
| 10・20 | 3.0×12.0 | 3,000 | 12,000 | 1,023 | SC-4LA-50 | |
| 10・20 | 3.0×13.0 | 3,000 | 13,000 | 1,023 | SC-4LA-50 | |
| 10・20 | 3.0×15.0 | 3,000 | 15,000 | 1,051 | SC-6LA-50 | |
| 60 | 10・20 | 3.0×8.0 | 3,000 | 8,000 | 1,035 | SC-4LA-60 |
| 10・20 | 3.0×10.5 | 3,000 | 10,500 | 1,035 | SC-4LA-60 | |
| 10・20 | 3.0×12.0 | 3,000 | 12,000 | 1,023 | SC-4LA-60 | |
| 10・20 | 3.0×13.0 | 3,000 | 13,000 | 1,023 | SC-4LA-60 | |
| 10・20 | 3.0×15.0 | 3,000 | 15,000 | 1,051 | SC-6LA-60 |
We also produce scales of special dimensions besides the above.
●SC-6LV・8LV Specifications of super-thin Embedded Type
| Capacity of Scale(t) | Scale Interval(kg) | Platform Dimension(m) | Width(mm) | Length(mm) | Height(mm) | Model |
|---|---|---|---|---|---|---|
| 30 | 10 | 3×8 | 3,000 | 8,000 | 400 | SC-6LV-30 |
| 30 | 10 | 3×10.5 | 3,000 | 10,500 | 400 | SC-6LV-30 |
| 40 | 10・20 | 3×8 | 3,000 | 8,000 | 400 | SC-6LV-40 |
| 40 | 10・20 | 3×10.5 | 3,000 | 10,500 | 400 | SC-6LV-40 |
| 50 | 10・20 | 3×15 | 3,000 | 15,000 | 400 | SC-8LV-50 |
| 60 | 10・20 | 3×15 | 3,000 | 15,000 | 400 | SC-8LV-60 |

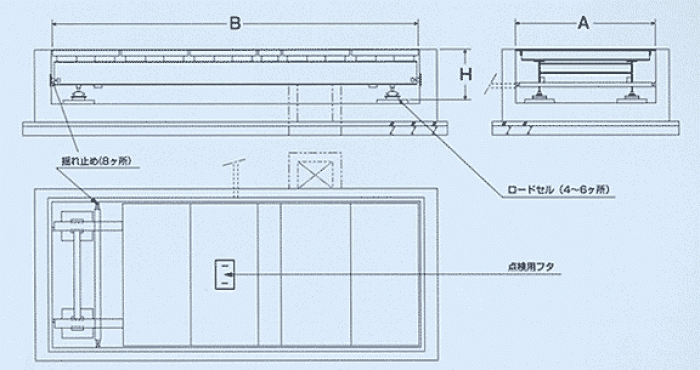

External form
