Hand Pallet ATEX specification
Model No. (DPS - 1000 bX/1500 bX/1000 SbX/1500 SbX)
This hand pallet can carry and weigh in 1 device that can save you works.

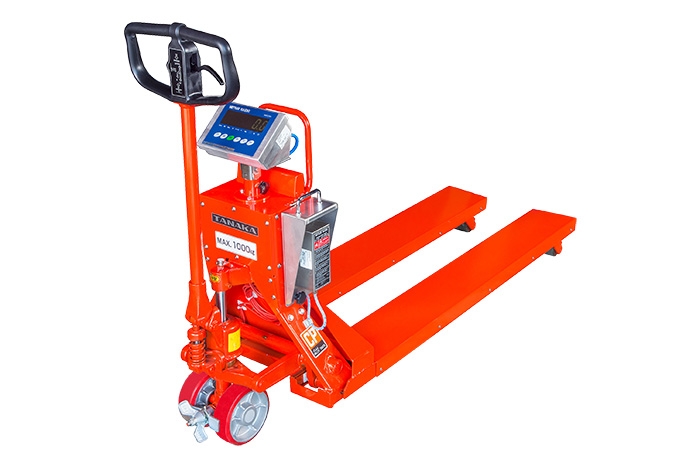

Appearance
Features
○ Carries and weighs in 1 device!
○ Large and easy-viewable digital display!
○Tip of fork and intermidiate roller is made for inserting easily into a pallet(except products stainless steel)
○ Repairing can be conducted not only scaling part but also hand pallet part.
○ ATEX specification (ATEX II 2 G Ex ib IIC T4 Gb)
* ATEX refers to the ATEX directive, and it is obliged to comply with the ATEX directive when using equipment within Europe in the environment where it has a possibility of explosion.
* When it used in Japan, please consult the nearest fire department.
* This product is only sold to high-pressure contractors.
Specification
| Model | DPS-1000bX | DPS-1500bX | DPS-1000SbX | DPS-1500SbX |
|---|---|---|---|---|
| Capacity of Scale | 1,000kg | 1,500kg | 1,000kg | 1,500kg |
| Scale Interval | 500g | 1kg | 500g | 1kg |
| Main Material | Steel | Stainless steel | ||
| Material of the caster | Non-static rubber (Steering wheel: Stereo rubber/ Load wheel: Urethane rubber) |
Non electrostatic resin (special resin) |
||
| Product dimensions | 590（W）×1,910（L)×1,170(H)mm | 590（W）×1,860（L)×1,170(H)mm | ||
| Platform Dimension | Fork length 1,350×Outside width 590mm | Fork length 1,350×Outside width 590mm | ||
| Maximum Height | 196mm | 200mm | 196mm | 200mm |
| Minimum Height | 82mm | 86mm | 82mm | 86mm |
| Power Supply | ATEX specification mobile battery (dedicated charger attached) | |||
| Battery | Operating time: about 60 hours/charging time: about 6 hours | |||
| Operating temperature range | -5℃～35℃ | |||
| Indicator | IND226x（ATEX specification） Display size: 7 segment display/6 digits/character height 30 mm, Function: Auto off function/tare subtraction function |
|||
| Dust repellent and waterproof | Load cell: IP 68 · 68 K/Indicator: IP 66/Battery: IP 67 (when connecting the connector) / Japanese mathematics box: IP 68 | |||
| Opution | Electrostatic diffusing wheel | |||
| Examination | None | |||

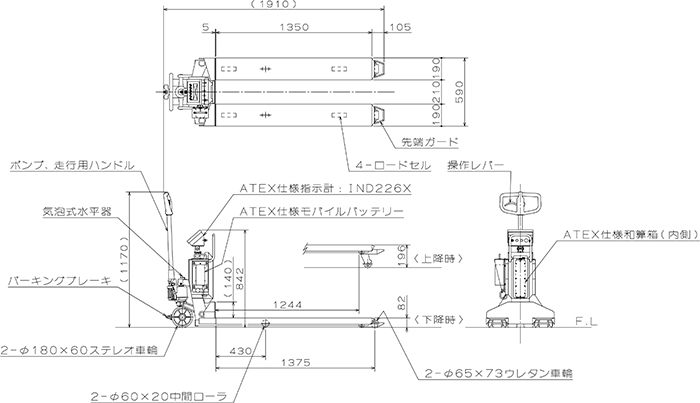

External form
