Digi-fork（DFS）
Your forklift turns into a weighing scale!
It saves labor in weighing and shipping operations and prevents from overloading.

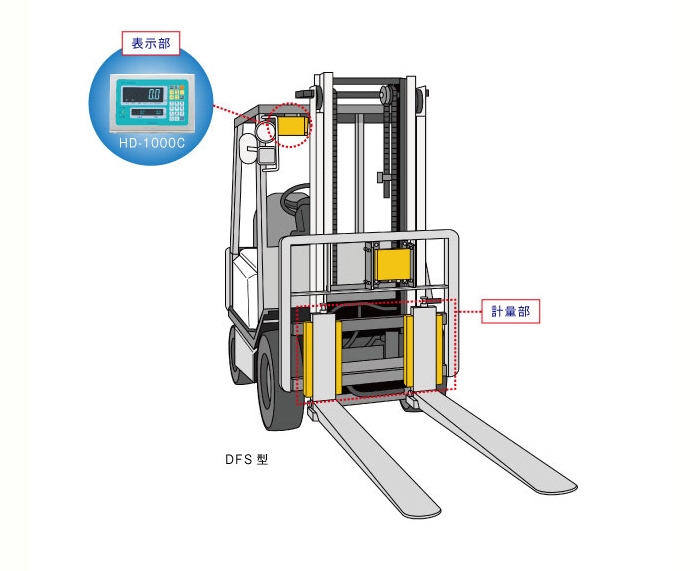

Appearance
Features
○ By attaching Digi-fork to a forklift, scaling function will be added into your forklift.
○ Carries and weighs in 1 device that can save the time.
○The maximum capacity of products are from 1 t to 2.5 t.
○ Attachment is completed in a short time.
Specification
【For purposes other than transaction certification】
| Model | DFS-1A | |
|---|---|---|
| Capacity of Scale | 1t～2.5t | |
| Scale interval | 1kg～2kg | |
| Indicator | HD-1000C | |
| Power Supply | AC100V (converted by inverter) | |
| Overall accuracy | ± 0.1% FS (depending on usage condition) | |
| Operating temperature range | -5℃～+40℃ | |
| Weight of body | Approximately 160 kg | |
＜Request＞
Please inform us the information about your forklift such as the name of manufacturer, model No. and specifications as some models cannot be attached Digi-fork.
＜Note＞
After attached the scale, the center of load balance will be tend to move to front part, therefore, the capacity of load drops by approximately 15 %.
