Agricultural Weighing Scales(List)

Super shutter scale

穀物（主に玄米、白米）供給用に開発された高精度供給シャッターです。
被計量物の流れ具合により外側より簡単に流量調整が可能です。

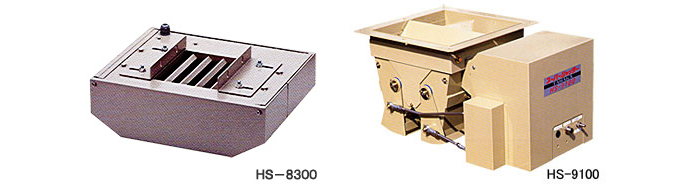

Appearance

Appearance

Features

○ The HS-8300 shutter is by 3-step control with AC solenoid. Two-step control is also possible by combination with a two-step control board.
○ The HS-9100 shutter is by gate control by air. It is suitable for automatic control of a scale with large weighing capacity such as FSD-1000 type Flex-con.

Specification

Model HS-8300 HS-9100
Capability 4 t/hr (when weighing 30 kg white rice) 12 t/hr (when weighing 1 ton white rice)
Control method Three-step control Two-step control
Driving method AC solenoid Air cylinder
Air source 　 0.4MPa（10L/min）
Power supply AC100V AC100V
Weight 　 30kg
Option 3-step control panel
Weighing part		 Sample Extraction Device
Filter/Regulator

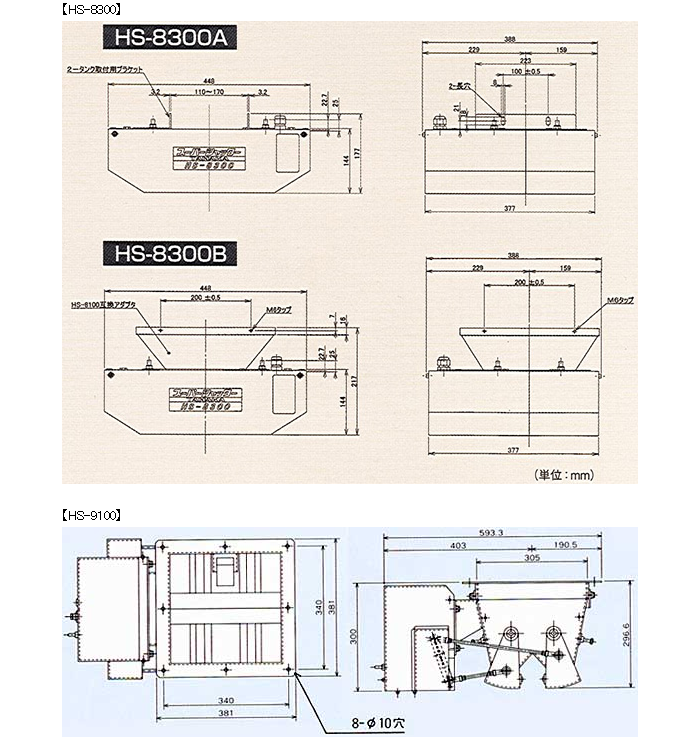

External form

External form

Related Equipment

  • TR - Hopper
    (TR-30K)

    TR - Hopper

  • FSD type Flexible-container scale
    (FSD-1000)

    FSD type Flexible-container scale
