TR - flow meter
A variety of flow meters for various applications,such as yield rate control and receiving/shipping cntrol,are available.

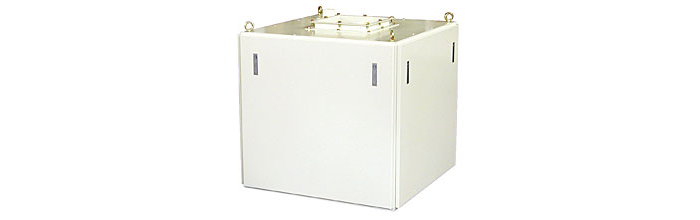

Appearance
Features
○ Easy-to-view digital display and printer are all-in-one, and numerical management is easy with the printer.
○ A large space is not necessary owing to compact body design.
○ Because of the simple structure using a load cell, it is strong against dust and easy to maintain.
Specification
| Model | TR-5T | TR-10T | TR-15T | TR-20T | TR-25T | TR-36T |
|---|---|---|---|---|---|---|
| Capacity of Scale | 20kg | 50kg | 50kg | 100kg | 100kg | 150kg |
| Scale Interval | 50g | 50g | 50g | 100g | 100g | 100g |
| Processing capability | 5t/H | 10t/H | 15t/H | 20t/H | 25t/H | 36t/H |
| Others | Weight detection: 2-point load cell type Control method: Air control Air source: 0.4 to 0.5 Mpa 50 l/min (ANR) Power supply: AC 100 ± 10% 50/60 Hz |
|||||
The lower hopper is optional. We also produce a high-accuracy type.
Processing capacity 3 t/H type is also available.

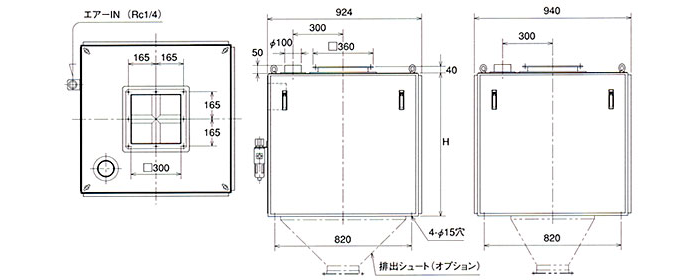

External form
