Mechanical Platform Scales(List)
Automatic Platform Scales
The mechanical platform scales having a round scale plate and spring to which temperature correction is made.

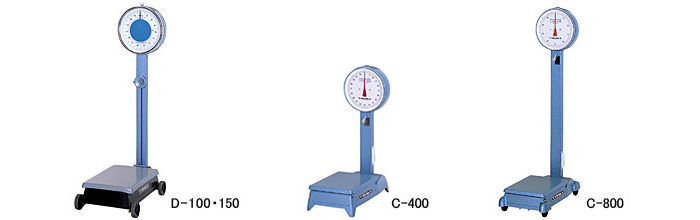

Appearance
Specification
| Model | Capacity of scale | Scale interval | Platform Dimension(mm) |
|---|---|---|---|
| C-400-20 | 20kg | 50g | 375×260 |
| C-400-50 | 50kg | 100g | 375×260 |
| C-400-100 | 100kg | 200g | 375×260 |
| C-800-50 | 50kg | 100g | 375×260 |
| C-800-100 | 100kg | 200g | 375×260 |
| V-30 | 30kg | 50g | 380×260 |
| V-50 | 50kg | 100g | 380×260 |
| D-100 | 100kg | 200g | 510×330 |
| D-150 | 150kg | 500g | 510×330 |
| D-250 | 250kg | 500g | 570×390 |
| D-500 | 500kg | 1kg | 625×420 |
Both the C-400 type and C-800 type can be manufactured with casters or without casters.
Only the V type without casters can be manufactured.
Only the D type with casters can be manufactured.
