Mechanical Platform Scales(List)
Conventional Platform Scale
We have manufactured the conventional mechanical scales since our foundation. Scales suitable for fisheries and the food processing industries (T-79S) are also available.

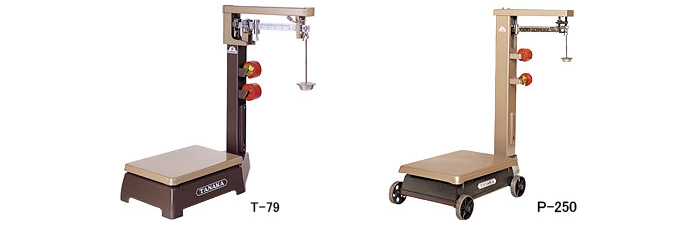

Appearance
Specification
| Model | Capacity of scale | Scale interval | Platform Dimension(mm) |
|---|---|---|---|
| T-79-20 | 20kg | 10g | 380×260 |
| T-79-50 | 50kg | 20g | 380×260 |
| T-79-100 | 100kg | 50g | 380×260 |
| P-150 | 150kg | 100g | 510×330 |
| P-250 | 250kg | 100g | 570×390 |
| P-250 | 250kg | 100g | 570×390 |
| P-500 | 500kg | 200g | 625×420 |
| P-1000 | 1t | 500g | 810×635 |
| P-2000 | 2t | 1kg | 1010×790 |
| P-3000 | 3t | 1kg | 1010×790 |
* For the scales whose weighing capacity is 500 kg or more, a shock absorbing device can be manufactured on request.
