Perfection Scales()
Perfection scale（PF9 Series）
Lineup of two models, namely standard type with no printer and built-in printer type

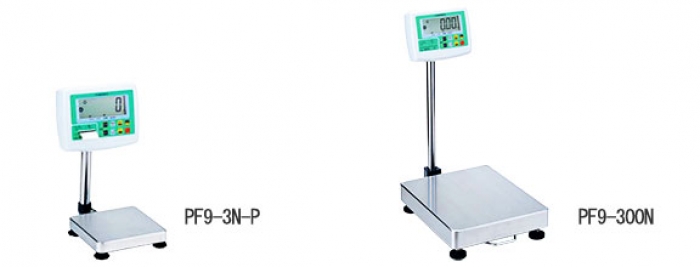

Appearance
Features
Bright and easy-to-see white LED backlight
LCD display of top class, as the character height is 45 mm
Checker function to check excess or deficiency of weighing value
Specification
| Model(Without printer) | PF9-3N | PF9-6N | PF9-15N | PF9-30N | PF9-60N | PF9-150N | PF9-300N |
|---|---|---|---|---|---|---|---|
| (With Printer) | PF9-3N-P | PF9-6N-P | PF9-15N-P | PF9-30N-P | PF9-60N-P | PF9-150N-P | PF9-300N-P |
| Capacity of Scale | 3kg | 6kg | 15kg | 30kg | 60kg | 150kg | 300kg |
| Scale Interval | 1g | 2g | 5g | 10g | 20g | 50g | 100g |
| Platform Dimension | 240mm×240mm | 520mm×420mm | |||||
| Weight | About6kg | About17kg | |||||
| Tare subtraction | Actual tare subtraction or fixed tare subtraction (selectable) Tare subtraction limit is up to weighing capacity | ||||||
| Operating temperature range | -5℃～＋35℃ | ||||||
| Display mark |
Liquid crystal display Character height 45 mm With white LED backlight | ||||||
| Built-in printer | Thermosensitive roll paper Width of paper 58 mm Nine printing formats are available | ||||||
| Power Supply | When using dry cells: 9 V/DC Single 1 × 6 (sold separately) When using the attached AC adapter: 6 V/DC 300 mA When it is with a printer, use a dedicated AC adapter: 7.5 V/DC 4 A |
||||||
| Battery life | Alkaline battery About 500 hours (no printer, no option, backlight OFF) | ||||||
| Oputions | OP-01Serial output OP-02Comparator output | ||||||

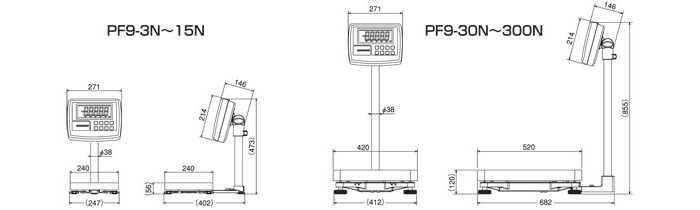

External form
