Systems(List)
ATS-100
Easy connection to newly set truck scales as well as existing scales.
Automatic processing from weighing to tallying of various forms. It corresponds to automatic weighing by punch card, IC card etc.

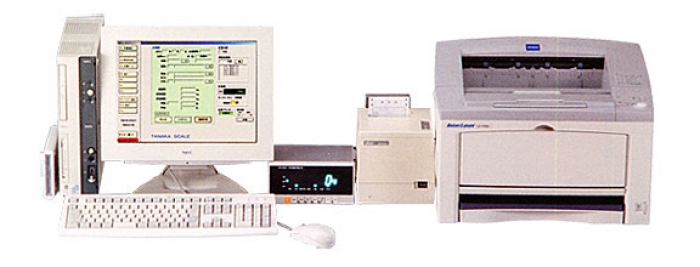

Appearance
Features
○ Easy connection to newly set truck scales as well as existing scales and operation is possible.
○ Weighing operation can be easily conducted with mouse and key operation by dialogue box on a large screen.
○ Customers are widely supported by a variety of tally and printing formats.
○ It can be used in a wide range of industries, such as the quarrying, food and chemical industries, industrial waste disposal sites, incineration facilities etc.

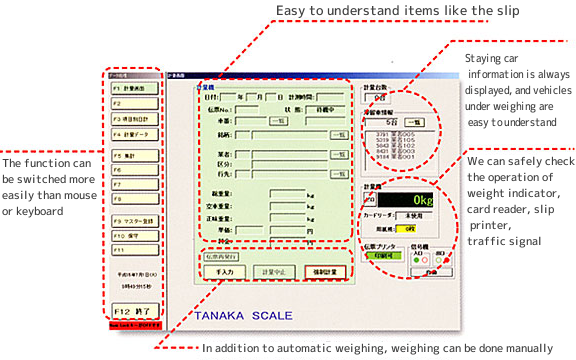

Screen example

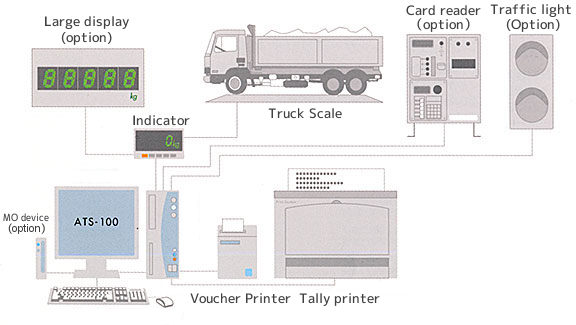

Configuration example
Specification
| Indicator | HD-1000CD（with communication function） |
|---|---|
| Voucher Printer | Kanji character Dot Printer Sprocket paper type |
| Computer | NEC MATE series or PC / AT compatible machine (DOS/V machine) , CPU: Pentium 1.5 GHz or more recommended, OS: Microsoft Windows 7 Professional 32-bit, hard disk space capacity: 100 MB or more (excluding data), RAM: 2 GB or more, interface: Serial (RS232C) port × 2 (Connection of indicator and voucher printer) USB port × 1 (connection of tallying printer) |
| Display | 17-inch liquid crystal type VGA (1024 × 768) or more |
| Tallying printer | Japanese Laser Printer A3 size paper compatible type |
* If you add an option, the interface you use also changes, so please consult us.
* Names of the described equipments etc. are manufacturer's registered trademarks in domestic and foreign countries.
* Font types of the printing formats may differ from the actual fonts
* This specification may change for improvement without prior notice.
