Truck Scales(Loading part)
Small size（TT-TA）
It is a low weighing-capacity type for small vehicles. We have embedded a type
requiring preparation of a pit, and a stationary type to be placed on the ground that vehicle gets on and off via a slope.
Appearance
Features
○ Ideal for truck weighing of small vehicles.
○ High accuracy, space-saving, easy to install and cheap.
○ Regarding the body, we have an embedded type and a stationary type. Indicators with printer or without printer.
We also have systems for automatic weighing using punch cards and IC cards.
Specification
| Capacity of Scale(t) | Scale Interval(kg) | Platform Dimension(m) | A(mm) | B(mm) | H(mm) | Model |
|---|---|---|---|---|---|---|
| 6 | 2 | 2.0×4.0 | 2,000 | 4,000 | 273 | TT-6TA |
| 2 | 2.2×4.5 | 2,200 | 4,500 | 273 | ||
| 10 | 2・5 | 2.2×4.5 | 2,200 | 4,500 | 276 | TT-10TA |
| 2・5 | 2.4×5.5 | 2,400 | 5,500 | 385 | ||
| 15 | 5・10 | 2.4×5.5 | 2,400 | 5,500 | 385 | TT-15TA |
We also produce products of special dimensions besides the above.

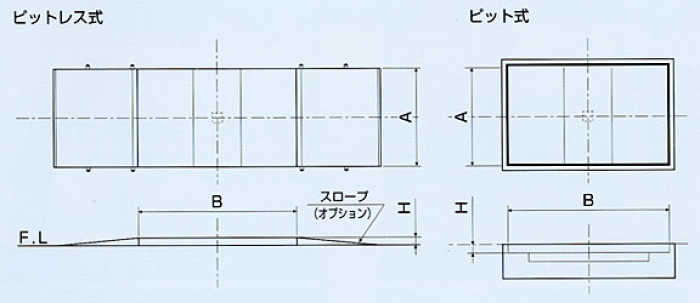

External form
